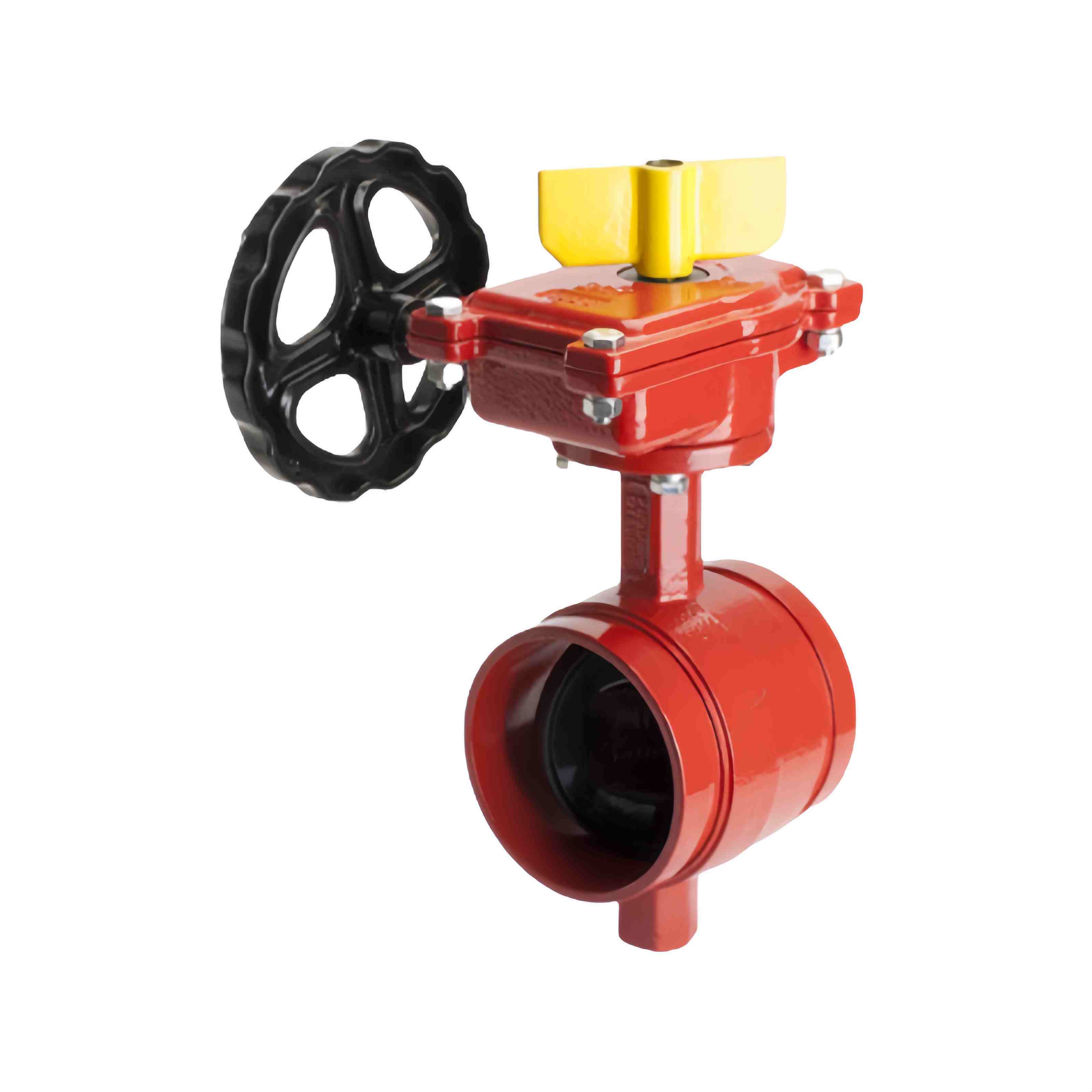

Grooved Butterfly Valve with Supervisor is an intelligent, critical component in modern fire protection systems. It combines the quick-installation benefits of a grooved valve with the life-saving function of continuous position monitoring.
مادة :
Ductile Ironالقطر الطبيعي :
DN50 to DN300اتصال :
Groovedضغط العمل :
PN10 PN16 PN25يكتب :
Butterfly Valveطلب :
Fire sprinkler systme,Fire hydrant system etc.الحد الأدنى لكمية الطلب :
20 Setsموعد التسليم :
15~45 Daysبريد إلكتروني : jony@jyfire.com.cn
Product Description

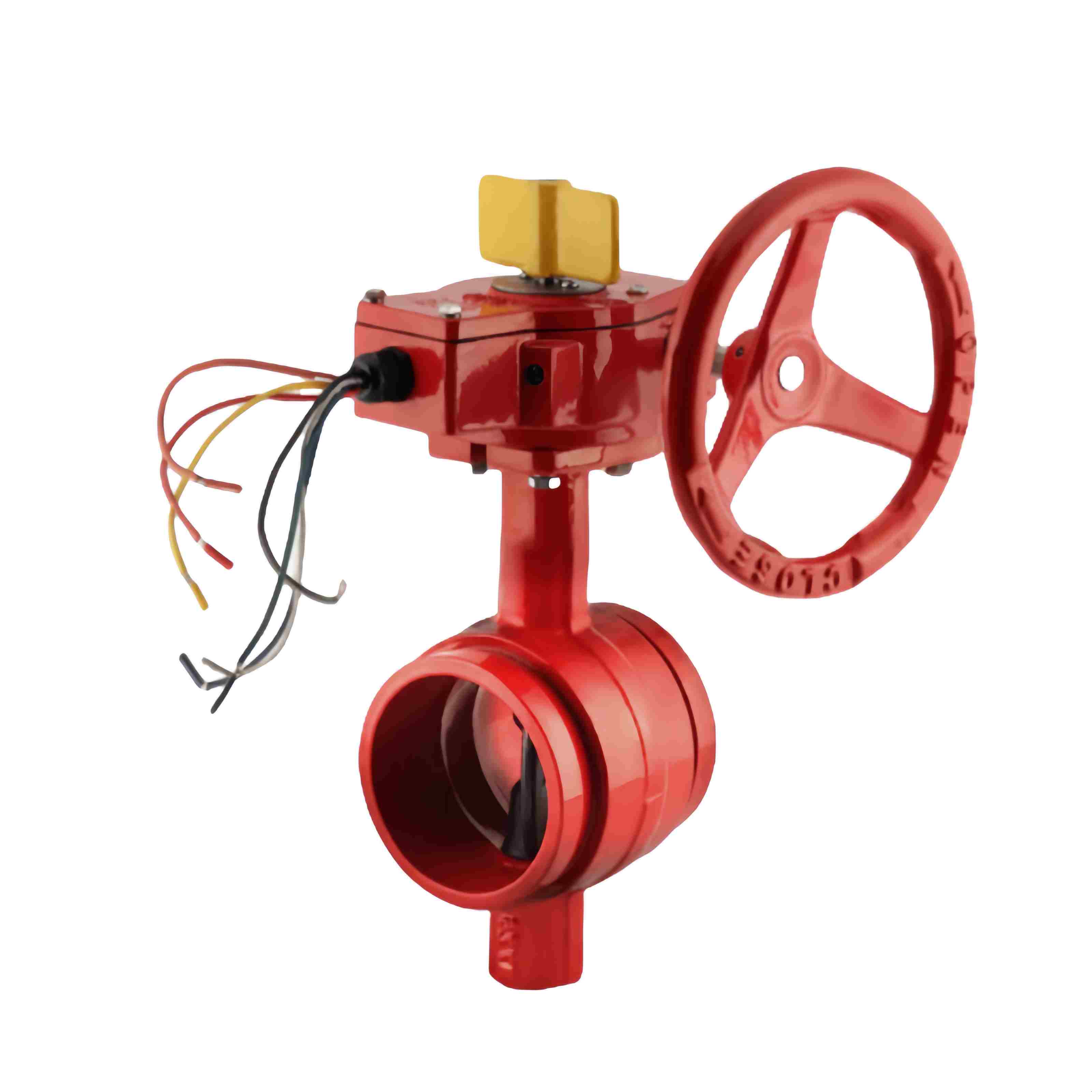

This valve combines the unparalleled installation speed of a grooved-end design with the critical safety feature of continuous valve position monitoring. The integrated supervisory switch provides immediate alerting if the valve is ever closed, preventing an impaired system from going unnoticed. It's the intelligent, code-compliant, and cost-effective choice for modern fire protection.
Features
Instant Tamper Alerting: Supervisory signal if valve is moved from open position.
90% Faster Installation: Grooved ends slash labor time and cost.
Full Code Compliance: Meets NFPA, UL/FM, and other international standards.
Robust & Reliable: Built for long-term performance in demanding environments.
Global Project Ready: Certified for worldwide use and export.
Product Parameter
| Technical Data | |
| Size | DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250-DN300 |
| Body Material | Ductile Iron |
| Disc Material | EPDM Encapsulated Ductile Iron |
| Working Pressure | PN10 PN16 PN25 |
| Temperature Range | -10℃~100℃ |
| Standard | FM/UL |
FAQ
Q：What’s the MOQ for groove butterfly valve ?
A：For standard sizes, our MOQ is usually 20 Sets . For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Why does the fire protection system mandate the use of this type of valve? Can't a common butterfly valve be used?
A：The aim is to address the huge safety hazard of "being closed without realizing it". If a common butterfly valve is accidentally closed and the management personnel cannot detect it in time, the fire protection system will fail due to water supply interruption during a fire.
Q：What are the differences between wafer-type butterfly valves and grooved butterfly valves? How to choose?
A：The valve body is equipped with complete grooves and can be directly connected to flangeless pipes through grooved pipe joints. Grooved type has absolute advantages in installation speed and cost, and is currently the first choice for fire protection systems.
