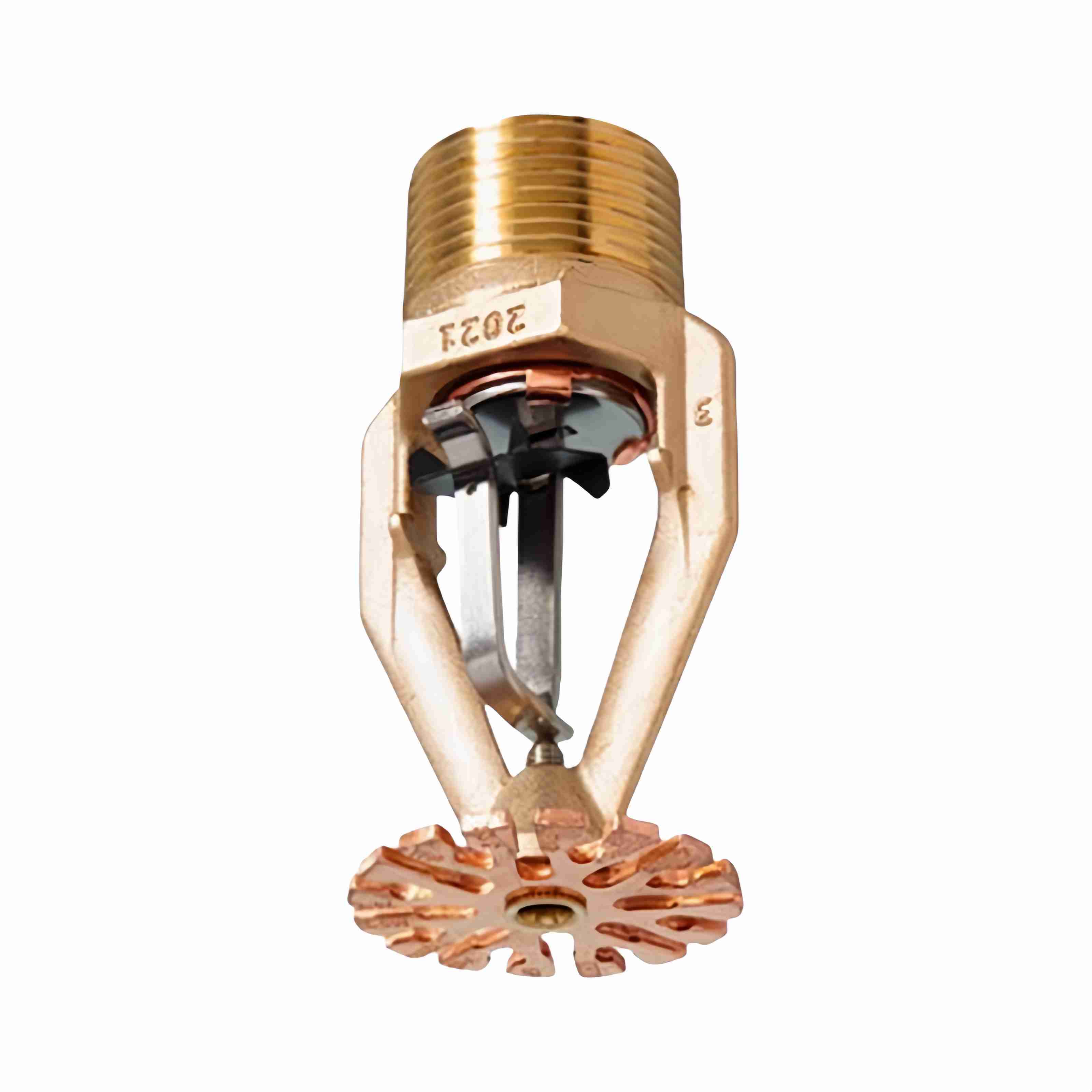

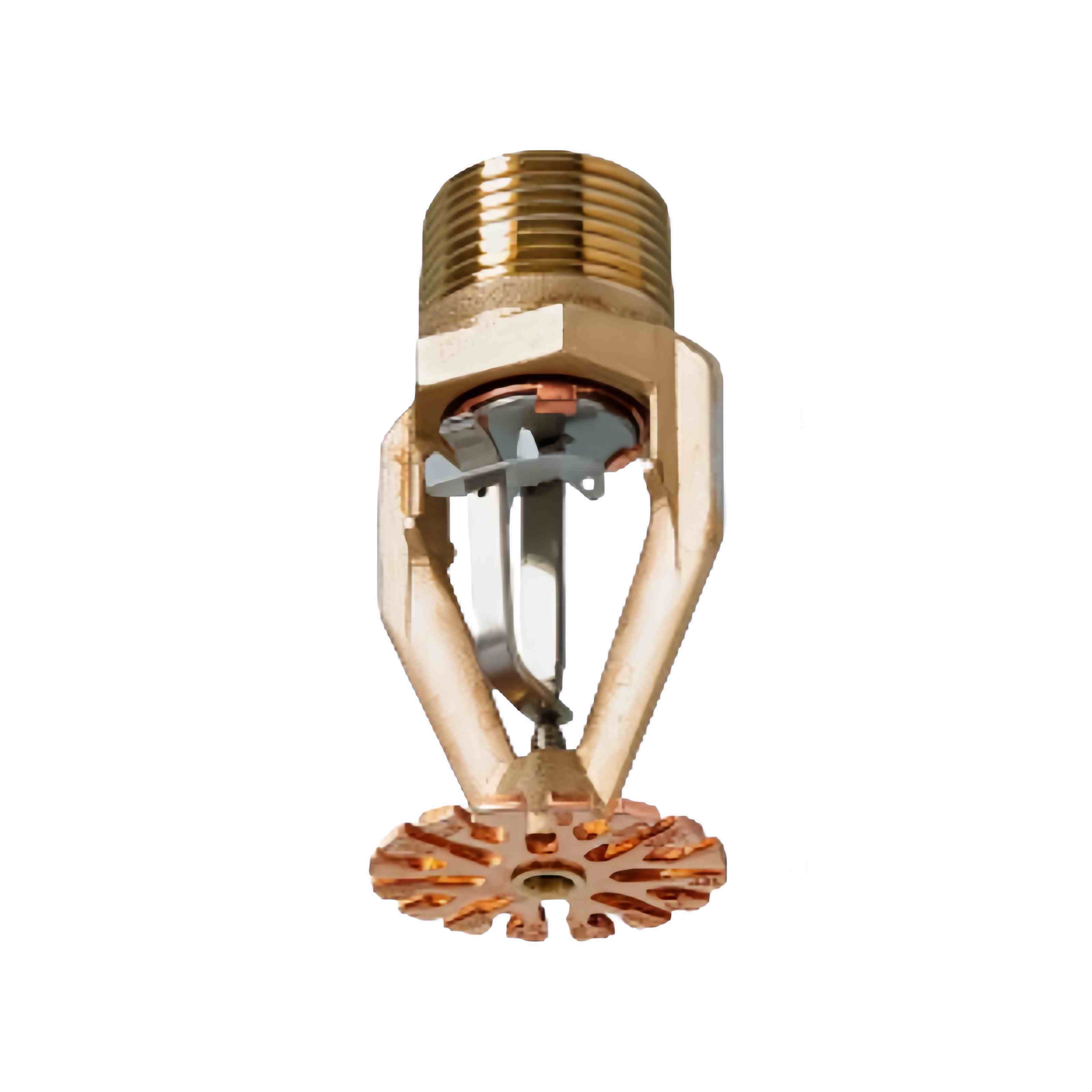

The UL ESFR K25.2 fire sprinkler is an advanced early suppression rapid response system. It is meticulously engineered to safeguard environments that present significant fire hazards, such as high-piled warehouses and shelving storage areas.
مادة الرشاشات :
Brassتركيب الرشاشات :
Pendentحجم الخيط :
1 in.NPTدرجة حرارة :
165℉（74℃） 212℉（100℃）لون المصباح الزجاجي :
Noneتشطيب السطح :
Natural Brassالحد الأدنى لكمية الطلب :
1000 Piecesموعد التسليم :
15~45 Daysبريد إلكتروني : jony@jyfire.com.cn
Product Introduction
The high-velocity water droplets emitted by the nozzle are capable of effectively penetrating the intense upward currents of hot air, commonly referred to as the "fire plume," produced by the flames. This allows the water to be delivered directly onto the surface of the burning material, facilitating rapid cooling and extinguishing of the fire.
"K25.2" refers to the flow coefficient of the nozzle, meaning that under the same pressure, it can spray more water than other smaller K-factor nozzles (such as K17). Its design goal is to sharply reduce the heat release rate and prevent reignition in the early stage of a fire, rather than mainly controlling the spread of the fire as in traditional sprinkler heads.
Product Features
• High flow coefficient.
• Rapid response: Utilizing rapid response thermal sensitive components, it can quickly activate in the early stage of a fire, seizing the best opportunity for fire suppression.
• High-momentum water droplets: Its specially designed deflector can generate water droplets with large particles and high kinetic energy. These water droplets can effectively penetrate the obstruction of the ascending air flow of the fire and directly reach the surface of the burning object for cooling.
Product Parameter
| Model | TY9223 |
| K-Factor | K25.2 |
| Temperature Rating | 165℉（74℃） 212℉（100℃） |
| Thread Size | 1 Inch NPT |
| Sprinkler Orientation | Pendent |
| Max.Working Pressure | 175 PSI |
FAQ
Q：What’s the MOQ for ul fire sprinkler?
A：For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
